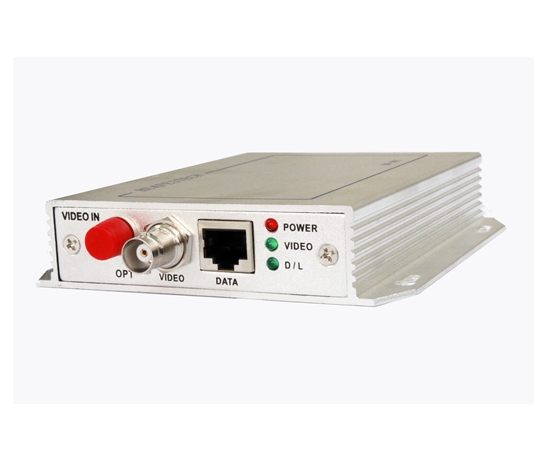

HF001-Point-to-Point Transmission
1-channel digital video/data series of optical multiplexers adopt international advanced technologies of digital uncompressed video
and gigabit fiber transmission, TDM, WDM, etc., transmitting 1-channel video, data(uni/bi-directional) signals on single fiber with
real-time synchronization, no distortion, high fidelity. The video quality can reach broadcasting standard, support data communication
like RS-232, RS-422 and RS 485(2/4 line) etc. It’s plug and play, no needing field regulation, designed in wide operating temperature
from -30 ºC to 75 ºC, with performance of dust/salt fog proof, makes it completely suitable for harsh environments.
8/10 digit coding, uncompressed video transmission
Support high resolution video signals
Exceed RS250C regulations to SNR, DG, DP
Auto compatible with PAL, NTSC, SECAM
With APC circuit, constant optical power output, large dynamic range
Surface Mount Technology
Gigabit fiber transmission, large capacity, easy to upgrade
Max transmission distance without repeater can reach 120km
Power supply and LED indicator monitors the running status of the system
Auto-negotiation, no needing on site electric/optical adjustment
Industrial and modular designs make the device reliable and flexible
Video | Interface | 1 channel video |
Bandwidth | 5Hz-10MHz | |
Interface | BNC | |
Input/output impedance | 75Ω (non-equilibrium) | |
Input/output voltage | 1Vp-p | |
DG(10-90% APL) | DG<1%(typical) | |
DP: (10-90% APL) | DP<1°(typical) | |
SNR(weighting) | S/N≥67dB(max optical link loss) | |
Data | Interface | 1 channel(one/two way) |
Interface terminals | RJ-45 | |
Interface signals | RS-232, RS-422(full duplex), | |
Bit rate | 0-256Kbps | |
Error rate | ≤10⁻⁹ | |
Optical | Interface | FC/ST |
Fibers | single fiber | |
Wavelength | 1310/1550nm | |
Mode | SM/MM | |
Optical power LD | (-11 to -4)dBm | |
Receiving sensitivity | ≥-25dBm | |
Environment | Operating Temperature | -30 ºC to 75 ºC |
Storage Temperature | -40℃～+85℃ | |
Relative humidity | 0～95% (non-condensing) | |
Rated voltage | *AC220V/50Hz | |
MTBF | ≥100000hrs | |
Mechanical | Dimension | (L*W*H): 129*116*26mm |
Weight | 0.4Kg | |
Mounting | Stand-alone/Rack mounting |
Model | Fiber | Transmission | Wavelength | Distance |
HF001-V1000T/R-M-2 | Multi-mode (62.5/125μm) | 1V↓ | 850nm | 2KM |
HF001-VD1100T/R-S-3-1 | Single-mode（9.0/125μm） | 1V↓+1D↑ | 1310/1550nm | 30KM |
HF001-V1000T/R-S-4 | Single-mode（9.0/125μm） | 1V↓ | 1310nm | 40KM |
HF001-V1000T/R-S-6 | Single-mode（9.0/125μm） | 1V↓ | 1550nm | 60KM |
HF001-VD1100T/R-S-3 | Single-mode（9.0/125μm） | 1V↓+1D↓↑ | 1310/1550nm | 30KM |
HF001-VD1100T/R-S-6 | Single-mode（9.0/125μm） | 1V↓+1D↓↑ | 1510/1310nm | 60KM |
