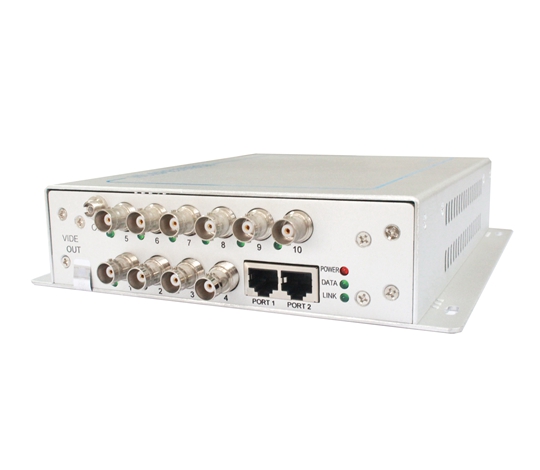

HF002-Node Transmission
10-channel node digital video transmission series of optical multiplexers adopt way of uncompressed digital
video transmission, combined TDM and ADM technologies; 10 node cascading multiplexers use 1.25G optical transmission platform, simultaneously transmitting 10-channel video signals, 10-channel uni/bi-directional data/audio signals, and supporting max 10 node, remote side can access 1-4 channel video signals, 1-channel bidirectional audio/data, 1-channel 485 data; local side can output 10-channel video/data/audio signals and 1-channel 485 data in real time. Designed in wide operating temperature from -30 ºC to 75 ºC with performance of dust/salt fog proof, makes it completely suitable for harsh environments.
8/10 digit coding, uncompressed video transmission
1.25Gbit/s all-digital optical transmission platform
Support high resolution video signals
Exceed RS250C regulations to SNR, DG, DP
Auto compatible with PAL, NTSC, SECAM
With APC circuit, constant optical power output, large dynamic range
Optical link automatic switching, lightning and surge protection
Support CWDM hybrid networking
Gigabit fiber transmission, large capacity, easy to upgrade
Auto-negotiation technology, no needing on site electric/optical adjustment
Industrial and modular designs make the device reliable and flexible
Power supply, optical link, data state indicator, easy to operate on site
Support network management
| Video: | |
| * Standard: | NTSC, PAL, SECAM |
| * Bandwidth: | 5Hz-10MHz |
| * Interface: | BNC |
| * Input/output impedance: | 75Ω (non-equilibrium) |
| * Input/output voltage: | 1Vp-p |
| * DG(10-90% APL): | DG<1%(typical) |
| ※ DP: (10-90% APL): | DP<1°(typical) |
| SNR(weighting): | S/N≥67dB(max optical link loss |
| Data: | |
| * Interface terminals: | RJ-45 |
| * Interface signals: | RS-232, RS-422(full duplex), RS-485(2/4 wire), contact closure, etc. |
| * Bit rate: | 0-256Kbps |
| * Error rate: | ≤10-9 |
| Optical: | |
| * Interface: | FC/ST |
| * Fibers: | single fiber |
| * Wavelength: | 1310/1550nm |
| * Mode: | Single/Multi-mode |
| * Fiber optical power LD: | (-11 to -4)dBm |
| * Receiving sensitivity: | ≥-26dBm |
| Audio: | |
| Monitoring audio | |
| * Bandwidth: | 10Hz-20KHz |
| * Sample frequency: | 48KHz |
| * Sample code: | 24bit |
| * Interface: | RJ45 |
| * Input impedance: | high impedance |
| * Output impedance: | 3KΩ |
| * SNR(weighting): | S/N≥85dB(Max optical link loss) |
| Network: | |
| * Ethernet: | IEEE |
| ※ Rate: | 10/100M |
| * Interface: | RJ45 |
| Mechanical: | |
| ※ Dimension: (L*W*H): | 219*202*48mm |
| * Weight: | 1.0kg |
| * Mounting: | Standalone |
| Environment: | |
| * Temperature: | -30 ºC to 75 ºC |
| * Storage temperature: | -40 ºC to 85 ºC |
| * Humidity: | 0 ºC to 95%( non-condensing) |
| * Rated voltage: | AC220V/50Hz |
| ※ MTBF: | ≥100000hrs |
