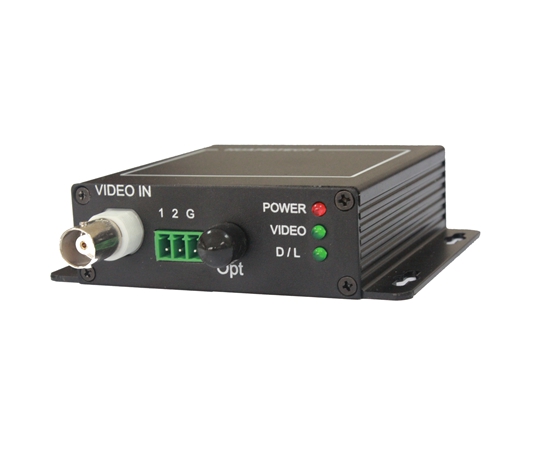

Cost-effective Digital Video transmission
1-channel digital video series of optical multiplexers adopt international advanced technologies of digital uncompressed video and gigabit fiber transmission, TDM, WDM, etc., transmitting 1-channel video, data/audio(uni/bi-directional), signals on single fiber with real-time synchronization, no distortion, high fidelity. The video quality can reach broadcasting standard, support data communication like RS-232,RS-422 and RS-485(2/4 wire) etc., support audio format like unidirectional surveillance, intercom etc. It’s plug and play, no needing field regulation, designed in wide operating temperature from -30 ºC to 75 ºC, with performance of dust/salt fog proof, makes it completely suitable for harsh environments.
8 digit coding, uncompressed video transmission
Exceed RS250C regulations to SNR, DG, DP
Auto compatible with PAL, NTSC, SECAM
With APC circuit, constant optical power output, large dynamic range
Surface Mount Technology
Support high resolution video signals
Industrial and modular designs make the device reliable and flexible
support standalone installation, or raccking installation
Gigabit fiber transmission, large capacity, easy to upgrade
Power supply and LED indicator monitors the running status of the system
Auto-negotiation technology, no needing onsite electric/optical adjustment
Power supply, optical link, data state indicator, easy to operate on site
| Video: | |
| *Interface: | 1-channel |
| * Bandwidth: | 5Hz-10MHz |
| * Interface: | BNC |
| * Input/output impedance: | 75Ω (non-equilibrium) |
| * Input/output voltage: | 1Vp-p |
| * DG(10-90% APL): | DG<1%(typical) |
| ※ DP: (10-90% APL): | DP<1°(typical) |
| * SNR(weighting): | S/N≥67dB(max optical link loss) |
| Data: | |
| * Interface: | 1-channel |
| * Interface terminals: | 5-pin, plug-in terminal block |
| * Interface signals: | RS-485(2 wire), contact closure, etc. |
| * Bit rate: | 0-256Kbps |
| * Error rate: | ≤10⁻⁹ |
| Optical: | |
| * Interface: | FC/ST |
| * Fibers: | single fiber |
| * Wavelength: | 1310/1550nm |
| * Mode: | Single/Multi-mode |
| * Optical power LD: | (-11 to -4)dBm |
| * Receiving sensitivity: | ≥-26dBm |
| Environment: | |
| * Temperature: -30 ºC to 75 ºC | |
| * Storage temperature: | -40 ºC to 85 ºC |
| * Humidity: | 0 ºC to 95%( non-condensing) |
| * Rated voltage: | AC220V/50Hz |
| ※ MTBF: | ≥100000hrs |
| Mechanical: | |
| * Dimension: (L*W*H): | 69*50*24mm |
| * Weight: | 0.1kg |
| * Mounting: | Standalone |
HF-1V-T/R-S-2
HF-1V1D-T/R-S-2-1
HF-1V1A-T/R-S-2-1
HF-1V1A1D-T/R-S-2
HF-1V1D-T/R-S-2
HF-1V2A-T/R-S-2
HF-1V2D-T/R-S-2
HF-1V4A-T/R-S-2
HF-1V4D-T/R-S-2
HF-1V4A4D-T/R-S-2
