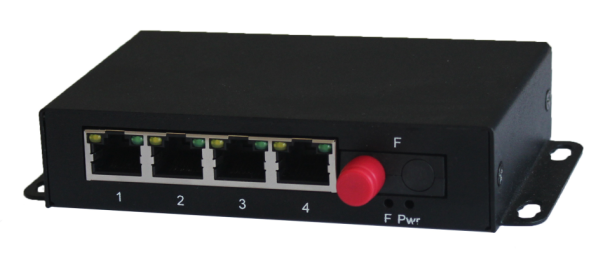

HF-500-E4 Series

5-port 100M Fiber Media Converter

Product Description

HF-500 E4 Series fiber media converters are Ethernet transmission equipment, conform to IEEE802.3 standard. The equipment transmit on single/multi-mode fibers by transforming the electrical signal to optical signal, Ethernet use optical fibers to realize the long-distance transmission from few kilometers to hundreds of kilometers on the premise of high broadband transmission. Using media converter can save network investment, a good solution for long- distance transmission. designed in wide operating temperature from -30 ºC to 75ºC with performance of dust/salt fog proof, makes it completely suitable for harsh environments.

Features

Conform to IEEE802.3, IEEE802.3u standards

With APC circuit, constant optical power output, large dynamic range

Surface Mount Technology

Power supply and LED status indicator can monitor the running status of the system

Power supply, optical fiber link, data state indicator, easy to operate on site

Support link-loss detection

Complete LED diagnostic function

Offer adjustable transfer modes

Support protocols IEEE802.3Q VLAN TAG, Spanning Tree etc.

RJ-45 interface supports 10/100M rate, full/half duplex, MDI/MDI-X

Support 1552 byte long packet transmission

Specifications

Network


Ethernet protocol

Comply to IEEE standard

Rate

10/100M, full/half duplex, with Automatic broadband control

Interface

RJ45

Jumbo frame

1.5KBytes

Packet buffers

0.5Mbits

MAC table

1K

Optical


Interface

SC/FC for option

Fiber core

Single/dual fiber

Working wavelength

1310nm/1550nm(850nm)

Fiber mode

Single/multimode

Optical power LD

Optical source(-11~-4)dBm

Receiving sensitivity

≥-26dBm

Environment


Temperature/Humidity

Environmental temperature: -30℃~+75℃,

Storage temperature: -40℃~+85℃

Relevant humidity: 0~95%( non-condensing)

Voltage

DC 5V

MTBF

≥100000Hours

Mechniacal


Measure

113 × 64 × 27mm

Weight

0.2kg


Measure(Unit mm)
Ordering information

Model

Fibers

Wavelength

Transmission

HF-500-E4

Single mode dual fibers(9.0/125μm)

1310nm

20KM

HF-500-E4-FT/R

Single mode single fiber

1310/1550nm

20KM

HF-500-E4-2

Single mode dual fibers(9.0/125μm)

1310nm

40KM

HF-500-E4-FT/R-2

Single mode single fiber

1310/1550nm

40KM

HF-500-E4--4

Single mode dual fibers(9.0/125μm)

1310nm

80KM

HF-500-E4-FT/R-4

Single mode single fiber

1310/1550nm

80KM
