Layer2 Managed Industrial Ethernet Switch

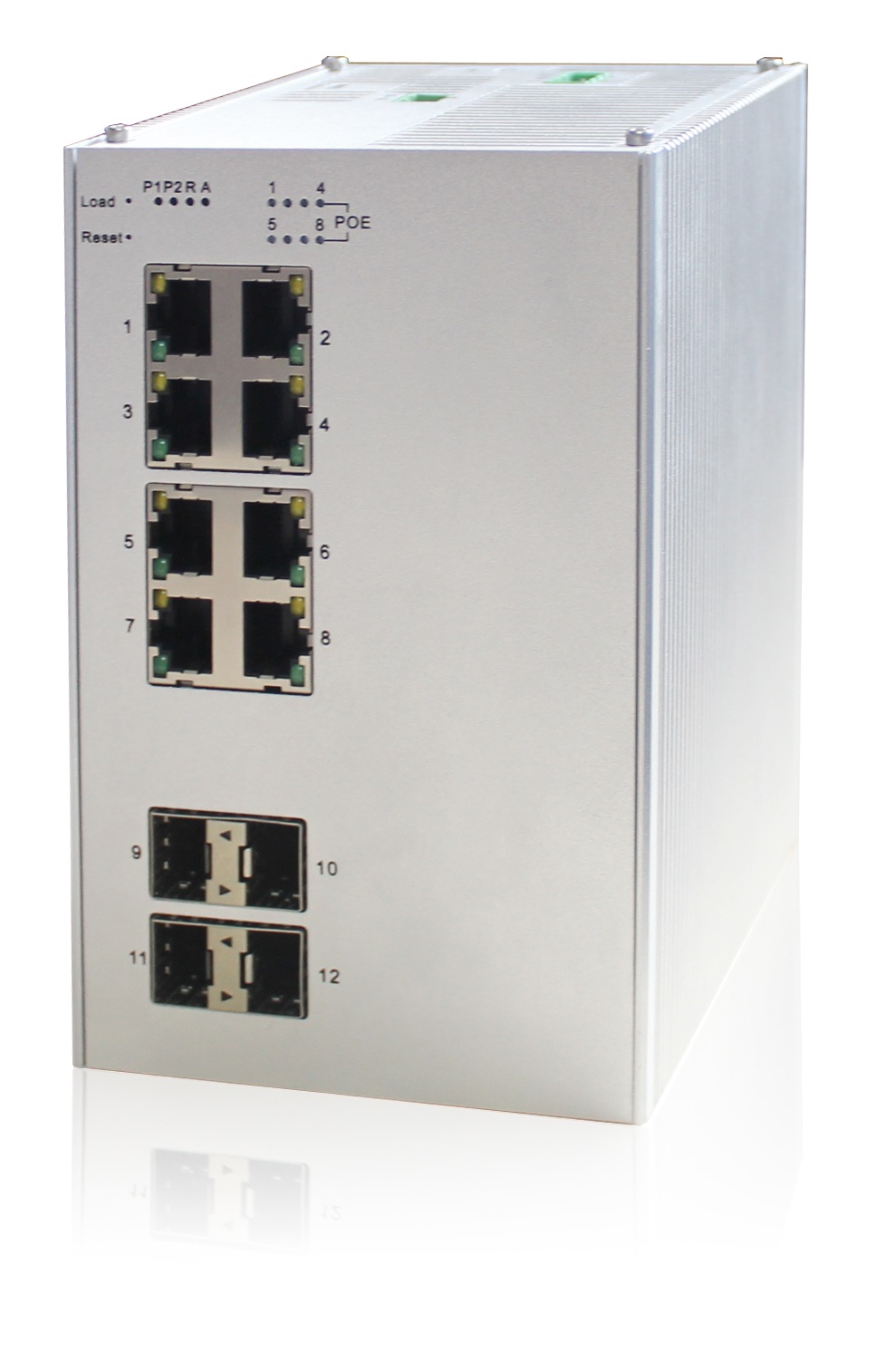

HF-IES-4000-N12P8GT4SF-P8(220VAC) is a 12 ports Layer2 Managed Din-rail Switch, could support 8*Gigabit TX ports and 4*Gigabit SFP ports, it’s plug and Play, 8 TX ports could support POE function. Support HF-Ring protocol (recovery time≤15ms) with various Management function. Adapting Industrial wide temperature design, working temperature -40℃ to +70℃,relative humidity 5% to 95%(non-condensing). One With dust/salt fog proof, completely suitable for hash environment.
Support IPv4/IPv6
Support Static route
Support HF-Ring, recovery time≤15ms
Support STP/RSTP/MSTP/ITU-T G.8032 Ethernet Ring Protection
Support IGMP v1/v2/v3 Snooping, MLD v1/v2 Snooping
Support IEEE802.1Q VLAN/MAC based VLAN/Protocol based VLAN/IP subnet based VLAN/GVRP/MVR
Support DHCP Server/Client/Relay/snooping
Support Port-based IEEE802.1X/Single and multiple IEEE802.1X/ MAC-based authentication/VLAN Assignment/ IP source guard/RADIUS/TACACS+ /ACL/SSH v2/HTTPS
Support DNS client/proxy
Support LACP/Link Aggregation Static
Support port mirroring, port speed limited, broadcast storm control
Support 2 *2.5G FX ports, could configured as 1G
Support WEB management, CLI-Console/Telnet, SNMP v1/v2/v3 RMON/System Syslog
Wide working temperature(-40℃~+70℃)
Support IEEE802.3af-2003,IEEE802.3at-2009(total consumption output ≤180W)
Comply with Industrial EMC 3 grade
Comply with strict electrical environment request.
Ports | |
100Base FX ports | 100Base-FX, single mode/Multi mode LC ports |
1000Base FX ports | 1000Base-X, single mode/multi mode LC ports |
1000Base TX ports | 10/100/1000Base-T(X) auto-negotiation Ethernet RJ45 ports |
CONSOL | Micro USB, RS232 TX/RX |
Transmission Distance | |
Twisted pair | 100m( adapting standarddCAT5、CAT5e) |
Multi mode optical fiber | 1310nm 5km(100M) 850nm 550m（1000M） |
Single mode optical fiber | 1310nm 40km/60km(100M) 1550nm 60km/80km(100M) 1310nm 10km/40km(1000M) 1550nm 60km/80km(1000M) |
Technology | |
Standard | IEEE 802.3i/802.3u/802.3ab/802.3z/802.3x/802.3ad/802.1p/802.1q /802.1d/802.1w/802.1s/802.1ad/802.3az/802.1x/802.1ab and etcc |
Flow control | IEEE802.3xflow control, backpressure flow control |
Transmission method | Storage and forward |
MAC table | 8K |
Packet buffer | 4Mbit |
Packet forwarding rate | 17.856Mpps |
Switching Delay | <5µS |
Power | |
Power backup | 220VAC(88～264VAC) , single power |
Power connection | 3 pin 5.08mm terminal block |
Alarm | 2 pin 5.08mm terminal block |
Power protection | Support Reverse Polarity protection, Overload Current protection, Alarm output |
Full load | ≤200W(Pls kindly note temperature derating )
|
LED indicators | |
LED |
Power : PWR, System running/ring Indicator: Run, Alarm: Alarm, Interface: Link/Act, Speed (console port)，Link/Act (FX port) |
Environment | |
Temperature/Humidity |
Operating temperature：-40℃～+70℃，Storage temperature：-40℃～+70℃，Operating humidity：5～95%(non-condensing) |
Warranty | |
Warranty | 3 years |
Physical Characteristics | |
Enclosure | Metal housing, |
Dimension | 155*128*95mm |
Weight | 1.5 Kg |
Installation | Din-rail/Wall-mounting |
