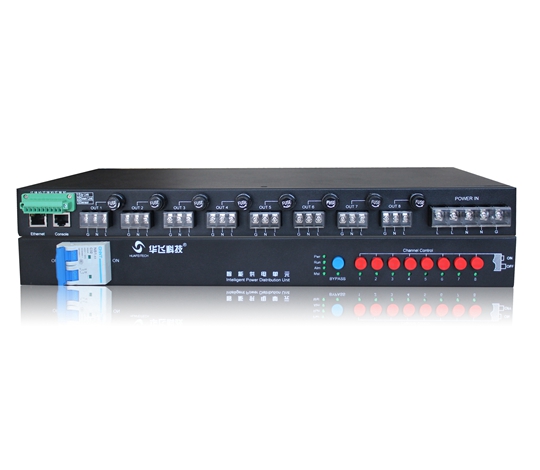

HF-IPDU1000 series
Intelligent Power Distribution Unit can realize the functions of time-sharing upper and lower power supplies according to the on-off sequence and delay time set by the customer, avoid the momentary high-current impact caused by multiple devices connecting or disconnecting power at the same time. It could realize and meet the technical requirements for the system operation to start and stop the equipment in a sequential order and the system operation procedures.
IPDUs can control local or wide area network (LAN) over the power of many devices in the equipment cabinet around the world for monitoring, control and management. In order to meet the limitations and requirements of various facilities, IPDUs provide a variety of connectivity options: support local LAN or WAN connectivity via Ethernet interfaces, access to control devices via SNMP, and support RS232 cascade control.
Support various forms of power interfaces, GB power terminals, fence terminals, etc.
Support 8 channels (1U), 16 channels (2U) output, maximum output current is 10A on each port GB power input terminal support a maximum 16A total input current, fence type power supply Input terminal support up to 60A total input current
Built-in circuit breaker
Optional 20A, 30A, 60A EMI filter.
Offer cascade control ports of serial devices, cascading up to 10 units of devices
Equipped with 3 channels RS232 interface, able to connect external smoke sensor, temperature sensor, humidity sensor.
Support network management function, can be monitored local operation state via WEB, Telnet, CLI and SNMP protocol, such as total load current, single channel load current, working voltage, etc.
Support on/off control of output channel, time setting of sequence on/off interval-delay, time setting of time switch
Support SNMP protocol, managing IPDU via SNMP
With single channel close button, manually turn off the output power of eachcircuit.
Custom alarm function provides total load current upper limit, load current upper limit alarm function for each output channel, and supports priority-based total load channel shutdown control function
Equipped with BYPASS button, bypassing the system software control , easy to on-site debugging
Power input | |
Interface type | GB terminal block, fence terminal block |
Input current | 16A，30A，60A |
Rated power | 3.52KW, 6.6KW,13.2KW |
Power output | |
Interface type | GB terminal block, fence terminal block |
Interface number | 8 channel(1U), 16 channel(2U) |
Output current | Max 10A at each port |
Manage interface | |
Console port | RJ45 |
Ethernet Port | RJ45 |
Cascade mouth | 9 Pin terminal block |
Control button | |
Bypass button | A bypass system control button |
Channel close button | A close button on each channel |
Sensor Interface | RS232 interface |
Environmental Limit | |
Storage Temperature | -40 to 85ºC |
Operating Temperature | -30 to 75ºC |
Operating Humidity | 5% to 95% Non-condensing |
Protection Level | IP40, optional higher level |
MTBF | Š100000 hours |
LED Indicator | |
Run | System running indicator |
Power | Power indicator |
Alarm | Alarm indicator |
Master | Cascade master indicator |
Physical Characteristic | |
Dimension (W x D x H) | 440×44×260mm 1U 440×88×260mm 2U |
Weight(kg) | 2kg(1U), 3kg(2U) |
Installation | Rack mount |
HF-IPDU1000-8-3BB
HF-IPDU1000-8-6BB
HF-IPDU1000-8-3BBEF
HF-IPDU1000-8-6BBE
HF-IPDU1000-8-1GG
HF-IPDU1000-8-1GGE
HF-IPDU1000-16-3BB
HF-IPDU1000-16-6BB
