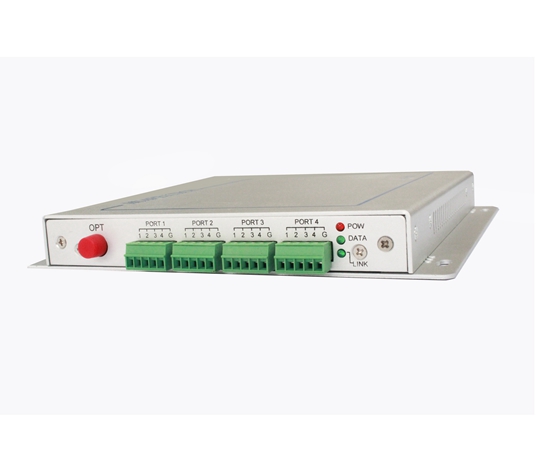

HF001-Point-to-Point Transmission
Multi-channel data/audio series of optical multiplexers adopt international advanced technologies of digital
uncompressed video and gigabit fiber transmission, TDM, WDM, etc., transmitting 4-64 channel data/audio(uni/bi-directional) signals on single fiber with real-time synchronization, no distortion, high fidelity. The video quality can reach broadcasting standard, support data communication like RS-232, RS-422 and
RS-485(2/4 line) etc., support audio format like unidirectional surveillance, intercom etc. It’s plug and play, no needing field regulation, designed in wide operating temperature from -30 ºC to 75 ºC, with performance of dust/salt fog proof, makes it completely suitable for harsh environments.
High-speed fiber digital transmission technology
Support RS-232, RS-422(full-duplex), RS-485(2/4 wire) data interface
Transparent data coding method
Data transmission rate DC-256 Kbps
With APC circuit, constant optical power output, large dynamic range
Surface Mount Technology
Gigabit fiber transmission, large capacity, easy to upgrade
Max transmission distance without repeater can reach 120km
Power supply and LED indicator monitors the running status of the system
Industrial and modular designs make the device reliable and flexible
Auto-negotiation technology, no needing onsite electric/optical adjustment
| Data: | |
| * Interface: | 4-64 channel (uni/bi-directional) |
| * Interface terminals: | 5-digit industrial standard terminals |
| * Interface signals: | RS-232, RS-422(full duplex),RS-485(2/4 wire), contact closure, etc. |
| * Bit rate: | 0-256Kbps |
| Error rate: | ≤10⁻⁹ |
| Optical: | |
| * Interface: | FC/ST |
| * Fibers: | single fiber |
| * Wavelength: | 1310/1550nm |
| * Mode: | Single/Multi-mode |
| * Optical power LD: | (-11 to -4)dBm |
| * Receiving sensitivity: | ≥-26dBm |
| Environment: | |
| * Temperature: | -30 ºC to 75 ºC |
| * Storage temperature: | -40 ºC to 85 ºC |
| * Humidity: | 0 ºC to 95%( non-condensing) |
| * Rated voltage: | AC220V/50Hz |
| ※ MTBF: | ≥100000hrs |
| Audio: | |
| Monitoring audio: | |
| * Interface: | 1-4 channel (one/two way) |
| * Bandwidth: | 10Hz-20KHz |
| * Sample frequency: | 48KHz |
| * Sample code: | 24bit |
| * Interface: | RJ45 |
| * Input impedance: | high impedance |
| * Output impedance: | 3KΩ |
| * SNR(weighting): | S/N≥85dB(Max optical link lossMechanical: |
| ※ Dimension: (L*W*H): | 219*202*48mm |
| * Weight: | 1.0kg |
| * Mounting: | Standalone/Rack mounting |
