Layer2 Managed Industrial Ethernet Switch

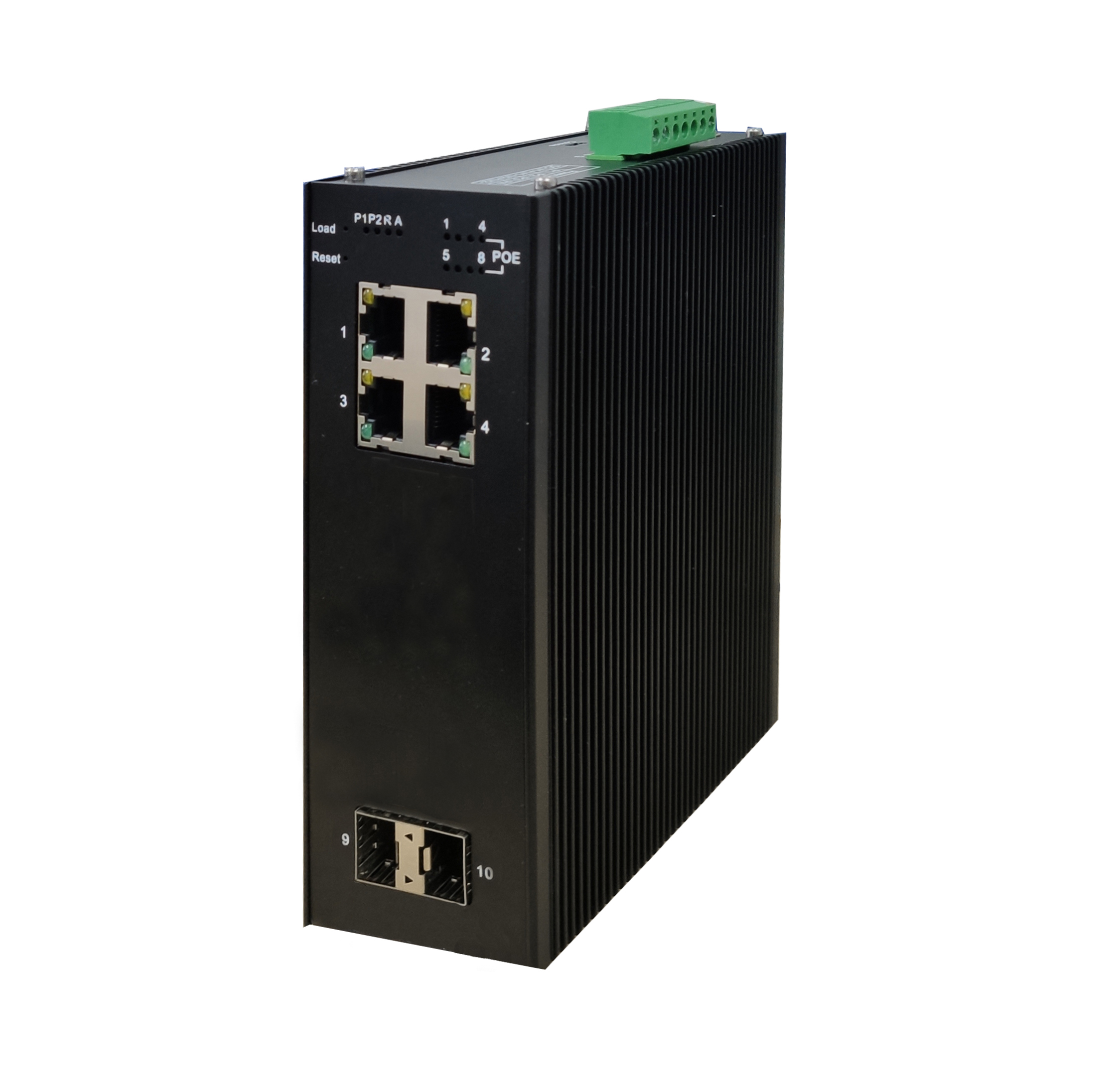

HF-IES-4000N-6P4GT2SF-P4 is a 6 ports Layer2 Managed Din-rail POE Switch, could support 4*10/100/1000Base Tx ports with POE+ function and 2*Gigabit SFP ports, it’s plug and play. Support HF-Ring protocol (recovery time≤15ms) with full management function, adapting Industrial wide temperature, working temperature is -40℃ ~+85℃ , relevant humidity 5-95%(non-condensing), with dust/salt fog proof, makes it completely suitable for hash environment.
Support IPv4/IPv6
Suport Static route
Support HF-Ring≤15ms
Support STP/RSTP/MSTP/ITU-T G.8032 Ethernet Ring Protection, IEEE 8023.af and IEEE 802.3at
Support IGMP v1/v2/v3 Snooping, MLD v1/v2 Snooping
Support IEEE802.1Q VLAN/MAC based VLAN/Protocol based VLAN/IP subnet based VLAN/GVRP/MVR
Support DHCP Server/Client/Relay/snooping
Support Port-based IEEE802.1X/Single and multiple IEEE802.1X/ MAC-based authentication/VLAN Assignment/ IP source guard/RADIUS/TACACS+ /ACL/SSH v2/HTTPS
Support DNS client/proxy
Support LACP/Link Aggregation Static
Support port mirroring, port speed limited, broadcast storm control
Support 2 *2.5G FX ports, could configured as 1G
Support WEB management, CLI-Console/Telnet, SNMP v1/v2/v3 RMON/System Syslog
Comply with Industrial EMC 4 grade
Green industrial Ethernet design, fanless, low consumption design
Wide working temperature(-40℃~+85℃)
Comply with strict electrical environment request.
IP40 protection level, metal housing.
Redundant Power Input design (for optional)
Ports | |
100Base FX ports | 100Base-FX, single mode/Multi mode LC ports |
1000Base FX ports | 1000Base-X, single mode/multi mode LC ports |
1000Base TX ports | 10/100/1000Base-T(X) auto-negotiation Ethernet RJ45 ports |
CONSOL | Micro USB, RS232 TX/RX |
Transmission Distance | |
Twisted pair | 100m( adapting standarddCAT5、CAT5e) |
Mulit mode optical fiber | 1310nm 5km(100M) 850nm 550m（1000M） |
Single mode optical fiber | 1310nm 40km/60km(100M) 1550nm 60km/80km(100M) 1310nm 10km/40km(1000M) 1550nm 60km/80km(1000M) |
Technology | |
Standard | IEEE 802.3i/802.3u/802.3ab/802.3z/802.3x/802.3ad /802.1p/802.1q/802.1d/802.1w/802.1s/802.1ad/802.3az/802.1x/802.1ab and etc |
Flow control | IEEE802.3xflow control, backpressure flow control |
Transmission method | Storage and forward |
MAC table | 8K |
Packet buffer | 4Mbit |
Packet forwading rate | 8.92Mpps |
Switching Delay | <5µS |
Power | |
Power backup | 48VDC, redundancy power supply |
Power connection | 7 pin 5.08mm terminal block |
Alarm | 7 pin 5.08mm terminal block (share the same terminal with power) |
Power protection | Support Reverse Polarity protection, Overload Current protection, Alarm output |
Full load | ≤10W |
LED indicators | |
LED | Power P1、P2，System running/ring indicator :R, Alarm :A Interface：Link/Act, Speed(TX)，Link/Act (FX) |
Environment | |
Temperature/Humidity | Operating temperature：-40℃～+85℃，Storage temperature：-40℃～+85℃，Operating humidity：5～95%(non-condensing) |
Warranty | |
Warranty | 5 years |
Physical Characteristics | |
Enclosure | Metal housing, fanless, IP40 protection. |
Dimension | 55×105×155mm |
Weight Installation | 1Kg Din-rail/Wall-mount |
