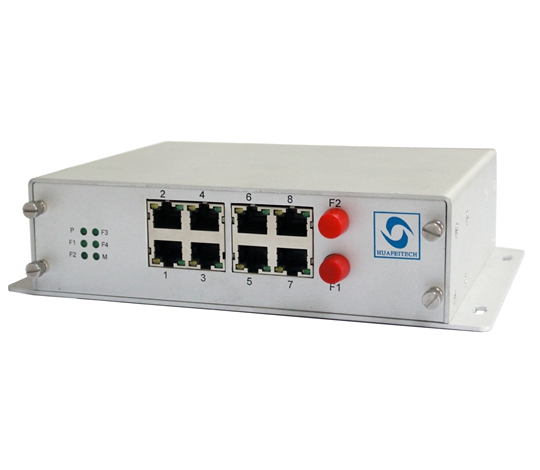

HD optical multiplexers series1-8 ports 100M Optical MultiplexersdescriptionHD optical multiplexers adopt international advanced digital uncompressed video and Gigabit fiber transmission and also TDM、WDM technology, transmitting 1-8 channel 100M compressed videos, uni-bidirectional data, audio signals on single fiber with high quality.
The video quality can reach broadcasting standard, support data communication like RS-232, RS-422 and RS-485(2/4 line) etc. Support audio format like one-way surveillance, intercom etc. plug and play, no needing field regulation. HD optical multiplexers are designed in wide operating temperature from -30 ºC to 75 ºC with performance of dust/salt fog proof, makes it completely suitable for harsh environments.
-
-
Compressed HD video seriesHF-RING-1000 HD self-healing optical multiplexers seriesdescriptionHF-RING-1000 series of multiplexers are industrial redundancy Ethernet fiber equipment. The unique
redundancy technology brings intelligent redundancy for your Ethernet; the standard industry level 4 design meets variety of on site requirements, adopting brilliant network solutions, offering non-blocking network transmission. HF-RING-100 multiplexers are designed in wide operating temperature from -30 ºC to 75 ºC with performance of dust/salt fog proof, makes it completely suitable for harsh environments.
-
Conform to IEEE802.3, IEEE802.3u standards
With APC circuit, constant optical power output, large dynamic range
Surface Mount Technology
Max transmission distance without repeater can reach 80km
Industrial and modular designs make the device reliable and flexible
Equipped with power supply indicator，optical fiber link indicator, data state indicator
Support link-loss
Complete LED diagnostic function
Offer dual adjustable transfer modes
Support protocols IEEE802.3Q VLAN TAG, Spanning Tree etc
RJ-45 interface supports 10/100M rate, full/half duplex, MDI/MDI-X
Support 1600 byte long packet transmission
Ethernet | |
Interface | 1-8 channel (shared 100M) |
Ethernet protocol | IEEE |
Network Rate | 10/100 TX auto negotiation |
Network interface | RJ45 |
Optical | |
Interface | SC/FC |
Fibers | Single fiber |
Mode | Singel mode/ multi-mode |
Wavelength | 1310nm/1550nm |
Optical power LD | Light source(-11~-4)dBm |
Receiving Sensitivity | Š-34dBm |
Data | |
Interface | 1-8channel(Bi-direction/Uni-direction) |
Terminals | DB-9 |
Signals | RS-232, RS-422(full duplex), RS-485(2/4 line) Contact closure |
Bit rate | 0-256Kbps |
Error rate | Š10 -9 |
Audio | |
Monitoring audio | |
Interface | 1-8 channel |
Bandwidth | 10Hz-20KHz |
Sample frequency | 48KHz |
Sample code | 24bit |
Interface | RJ45 |
Input impedance | high impedance |
Output impedance | 3KK |
SNR(weighting) | S/NŠ85dB(Max optical link loss) |
Intercom audio | support Lonbon system and Aiphone two way intercom system |
Environmental Limit | |
Storage Temperature | -40 to 85ºC |
Operating Temperature | -30 to 75ºC |
Operating Humidity | 5% to 95% Non-condensing |
Full load | AC 220V/50HZ |
MTBF | Š100000 hours |
Physical Characteristic | |
Dimension (W x D x H) | 180×95×29mm |
Weight(kg) | 0.5kg |
HF001-ED1100T/R-M-2
HF001-ED1100T/R-S-2
HF001-EADK1111T/R-S-6
HF001-ED2100T/R-M-2
HF001-ED2100T/R-S-2
HF001-EADK2111T/R-S-6
HF001-EAD4110T/R-M-2
HF001-EADK4111T/R-S-3
HF001-EAD8110T/R-S-6
HF001-EADK8111T/R-S-6
